What is a Pad mounted Transformer?

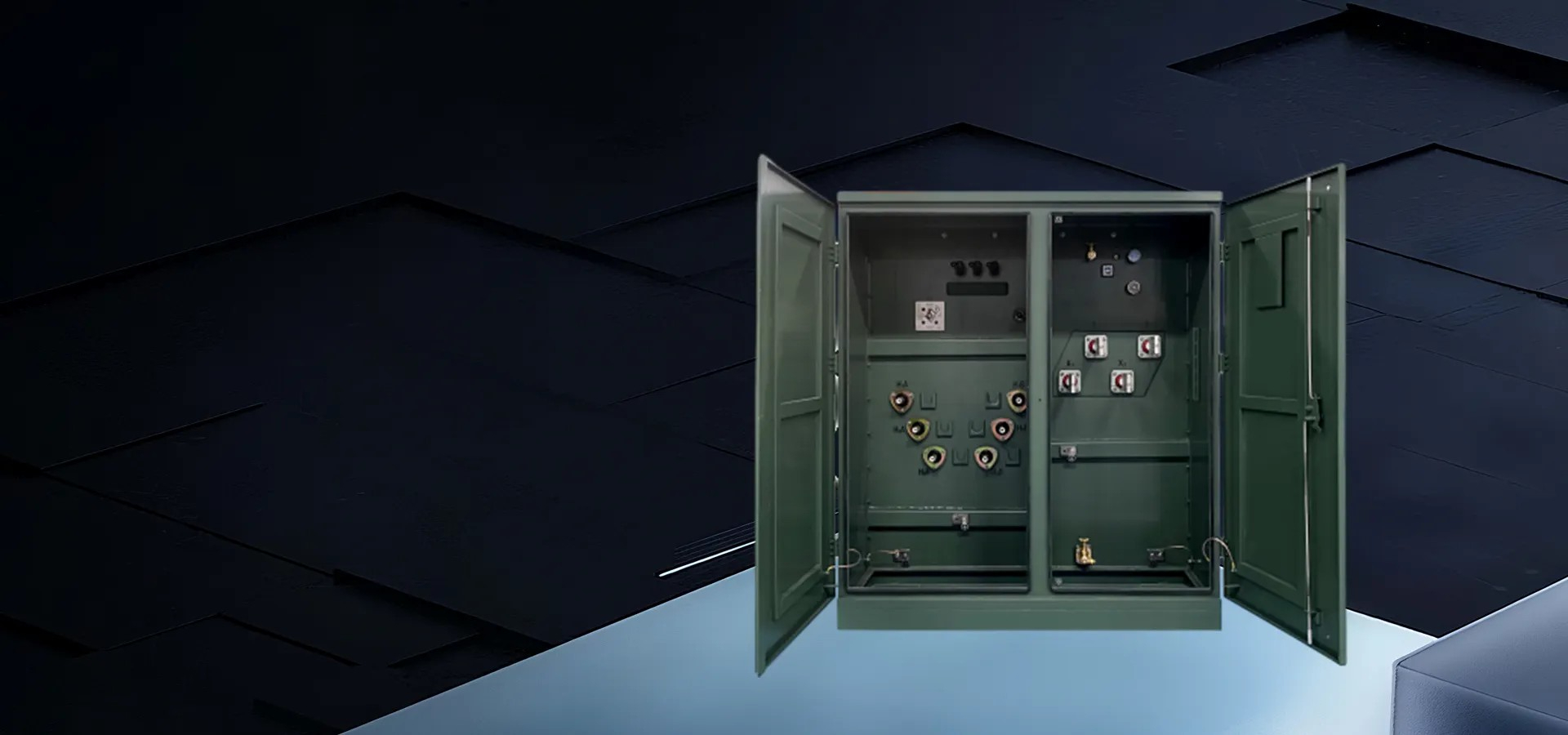

A padmount or pad-mounted transformer is a ground-mounted electric power distribution transformer in a locked steel cabinet mounted on a concrete pad.

Since all energized connection points are securely enclosed in a grounded metal housing, a padmount transformer can be installed in places that do not have room for a fenced enclosure.

Padmount transformers are used with underground electric power distribution lines at service drops to step down the primary voltage on the line to the lower secondary voltage supplied to utility customers. A single transformer may serve one large building or many homes.

Company Advantages

JiangsuYawei transtormers have been successtuly exported to severa countries incuding the United Stotes, Canada, Panama, Venezuela, Uzbekistan,Australia,and Bulgaria. We have sufficient production capacity to ensure that goods can be delivered on time. We have professional after-sales teams around the world, this ensures prompt trouble shooting and resolution of any issues you may encounter.

Whether you are a utlity company, transformer distributor, or builder, you can purchase JiangsuYawei's power transformer with confidence,knowing that you are investing in a reliable and reputabe product.Experience the efficiency and reliablity of JiangsuYawei Transtormer tailored to meet your specific needs.

Products Parameters

Rating :	Up to 4000 kVA
Voltage Class:	Up to 33 kV
Frequency:	50/60 Hz
HV Connection:	Single / Dual feeder
HV Protection:	Bayonet Fuses, Load Break Switch,Current Limiting Fuses, Fault passage indicator
LV protection:	MCCB / MCB / SFU / HRC Fuses
HV & LV Metering:	Yes

Products Advantages

Advanced Design: 100% Copper-wound, round coil, disc wound, slotted comb with sheet wound secondary, step lap mitered core with lower flux density.

High Efficiency Performance: Exceeds Energy Star and DOE energy efficiency standards , and meets the latest NEMA, ANSI and IEEE standards.

Cost Effective: Reduces utility and maintenance costs due to increased energy efficiency and superior design.

Quiet Operation: The combined effect of our precision hand-wound coils, completely varnishing the whole unit, and the step lap mitered core with lower flux density ensures minimal noise and vibration once installed.

Extended Life: Superior quality materials, superior design and expert craftsmanship deliver long-standing performance.

Proven: Provide safe, reliable power output in public space.

Cost-Efficient: Lower costs for installation upfront and promote increased savings.

Flexibility: New, reconditioned, or custom-built options are available for every application.

Customizable: From one to 1000 units, we build to spec for commercial & industrial use.

Applications

Utilities today seek to create and connect new sources of power generation to meet growing global demand, while also managing grid reliability, costs and regulatory factors.
